ORI CLS-3//88
MAGNETIC IN ATTRACTION
For ORI, everything begins with the design. These keyboards have always been rooted in three main principles of creation: Purity of lines, precision of proportions and simplicity.
In this way, ORI's designs have stood the test of time.
ORIにとって、すべてはデザインから始まります。 これらのキーボードは常に、創造の 3 つの主な原則に根ざしています。ラインの純粋さ、プロポーションの正確さ、シンプルさです。このようにして、ORI のデザインは時の試練に耐えてきました。
PERFECT PROPORTIONS
A delicate balance exists between line and shape as volume and harmony must emanate form every design. While an object's precision is measured by how you typing it, proportion rakes it to another level, defining its elegance.
ボリュームと調和がすべてのデザインから発せられる必要があるため、ラインとシェイプの間には微妙なバランスが存在します。 オブジェクトの精度は入力方法によって測定されますが、プロポーションはオブジェクトを別のレベルに引き上げ、そのエレガンスを定義します。
OVERVIEW
MODEL
ORI CLS-3
TYPE
TKL F13
COLOUR WAYS
Silver/Space Black/Scrimson Red/Forest Green
PLATE OPTIONS
Aluminium (Silver/Space Black/Scrimson Red/Forest Green) sandblast anodize
Brass sandblast and coating
Polycarbonate
Fr4
INTERNAL WEIGHT OPTIONS
Brass
Copper
EXTERNAL WEIGHT OPTIONS
Brass
Copper
SALE METHOD
Group Buy
START DATE
08.02.2023 (VN)
END DATE
16.02.2023 (VN) or 350 unit
PRICE*
Standard kit 616 USD ( Solder)
Founder Edition kit 1250 USD ( Solder)
(*) 4.4% paypal fee included
REGION SALE
International (shiping from VN)
US (shiping local via agency)
China (shiping local via agency)
Estimated delivery time
Q3 2023
DETAILS
BUILD

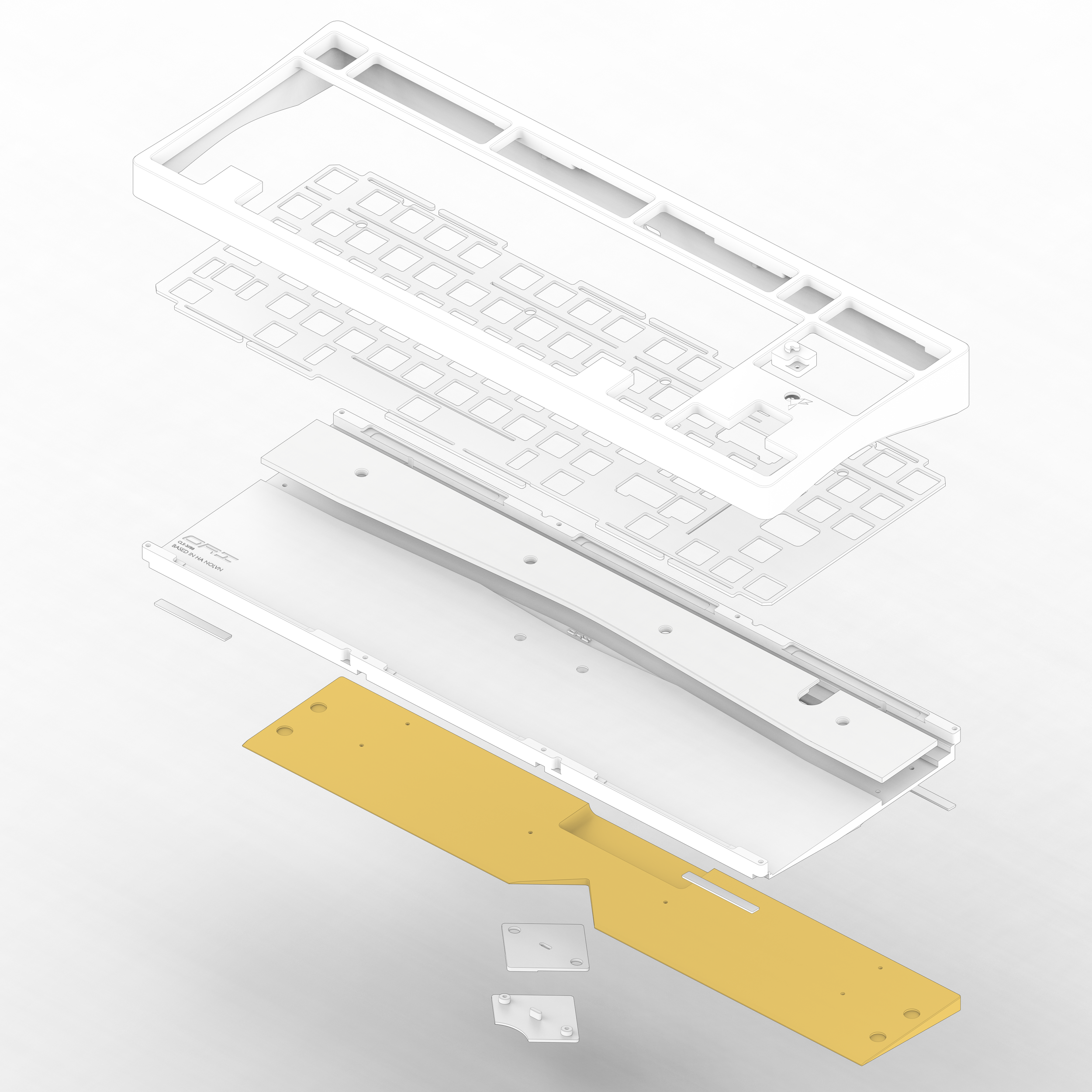

8 assembly parts
TYPING ANGLE
6 degree
PCB
ORI CLS-3//88
MATERIAL
Aluminium 6063/Brass
MOUNTING METHOD
Isolated gasket mount
PCB DESIGNER
Mechlovin
FIRMWARE
QMK + VIA
SWITCH COMPATIBILITY
Cherry MX
DIMENSIONS
360mm x 135.5mm x 31mm
17.8mm front height
WEIGHT
2.3 kg (unbuilt)
COLOURWAYS
SILVER
SPACE BLACK
FOREST GREEN
CRIMSON RED
FOUNDER EDITION
TOP PART
Aluminium
Anodized/ Dark Sandstorm(*)
MATERIAL
FINISH/COLOUR
BOTTOM PART
Aluminium
Anodized/ Rustic Gray(*)
INTERNAL WEIGHT
Stainless Steel
Physical mirror polishing
EXTERNAL WEIGHT
Physical mirror polishing
Stainless Steel
PLATE
Anodized/ Dark Sandstorm(*)
Aluminium
ACIENT BACK - CLOUD
Aluminium
Anodized/ Space Black
ACIENT BACK - SUN
Physical mirror polishing
Stainless Steel
LOGO FRONT - SUN
Physical mirror polishing
Stainless Steel
LOGO FRONT - BIRD
maki-e with Urushi gold by Artisal
Gold Powder : Shizendo since 1711 - Kyoto
Artisal: Dao Huy Hoang
Engraving on Aluminium
Founder Edition is limited to 30 kits. Numbered both top part and bottom part.
(*) This is an anodized color tank to be ordered separately and used for 30 ORI CLS-3//88 Founder Edition kits only. That means Founder Edition this time needs 2 custom color tanks.
The two selected colors are colors that are difficult to show on aluminum surfaces. But it's a great combination of natural color base. A real challenge for manufacturers.
As always, the color of the ORI CLS-3//88 Founder Edition will never be remade.
PLATE OPTIONS
ALUMINIUM ( Standard)
BRASS(+45)
POLYCARBONATE FROST (+38)
FR4(+30)
INTERNAL WEIGHT
BRASS( Standard)
COPPER(+15)
EXTERNAL WEIGHT
BRASS( Standard)
COPPER(+25)
LOGO FRONT
BRASS( Standard)
BRASS LEAF-GOLD (+20)
CLS-3//88 will use leaf-gold of HORI METAL LEAF & POWDER CO.,LTD. was established by Denbei Sunagoya in 1711(Edo Period).
UPGRADE/EXTRA AND PRICE
LAYOUT
WINKEY
WINKEYLESS
OPTIONS
0
0
PRICE UPGRADE
Unavailable
Unavailable
PRICE EXTRA
BOTTOM PART
Aluminium
Brass
0
250
Unavailable
Unavailable
PLATE
Aluminium
Brass
0
Unavailable
40
45
Polycarbonate
Unavailable
38
Fr4
Unavailable
30
INTERNAL WEIGHT
Brass
Copper
0
15
45
55
EXTERNAL WEIGHT
Brass
Copper
0
25
90
108
LOGO FRONT
Brass
Brass Leaf-gold
0
20
25
45
PCB
Solder
Hotswap
0
Unavailable
25
65
FOAM KIT
Plate foam/case foam
10
12
FEET
Gray
0
8
GASKET KIT
Poron LE
0
8
DESK MAT
Premium Felt (TKL size)
Gift ( If MOQ>200)
13
QUALITY DISCLOSURE
There should be no scuffs or scratches on the case top, sides, or bottom.
While I would love for the entire product to be faultless, I do know that there will be unavoidable circumstances. I will give my QC standards so we can avoid misunderstandings.
Grade A
There will be hook marks inside the parts after going through the anodize process, I accept no more than 3 dot in 1 area. Each dot should not exceed 2.5mm. Hook marks are only allowed to appear in invisible areas after the build (plate and switch installation)
There may be minor machining/tooling marks on internal faces.
The anodizing process will cause the color variation of the top part and bottom part to not 100% match under special lighting conditions. However, I would still accept a very slight difference, especially as the design of the CLS-3 is that the top part will snap over the rest.
There should be no scuffs or scratches on the case top, sides, or bottom.
Grade B
Update soon
The part is made of brass and sandblasted surface treatment, will have a uniform yellow color, the gain of the surface is relatively consistent. No scratches, dents, and stains.
Disclaimer: The stainless steel components of our product may have slight imperfections due to the manufacturing process. These imperfections may include small scratches or marks on the surface of the steel. However, any scratches or marks longer than 3mm or 3 spots that can be easily seen will be considered as defects, and will affect the functionality of the product. Additionally, variations in the finish of the steel may be visible under certain lighting conditions. We strive to provide high-quality products, but please note that due to the nature of stainless steel and the manufacturing process, these slight imperfections may occur. We apologize for any inconvenience this may cause.
SALE PLAN
Update soon
INSTRUCTION
Changes and upgrades for the final version
1
Alignment
Add 4 x Alignment Pin for support Plate
Alignment Pin is machined from POM plastic to reduce friction
2
FORCE BREAK MOD
Support “Force Break Mod”
According to multiple tests, ORI CLS-3 does not suffer from ping-case status. However, I still want to support Force Break to make sure it can be eliminated.
These are the changes that will be made to the final version compared to the already reviewed Prototype V3 version.
